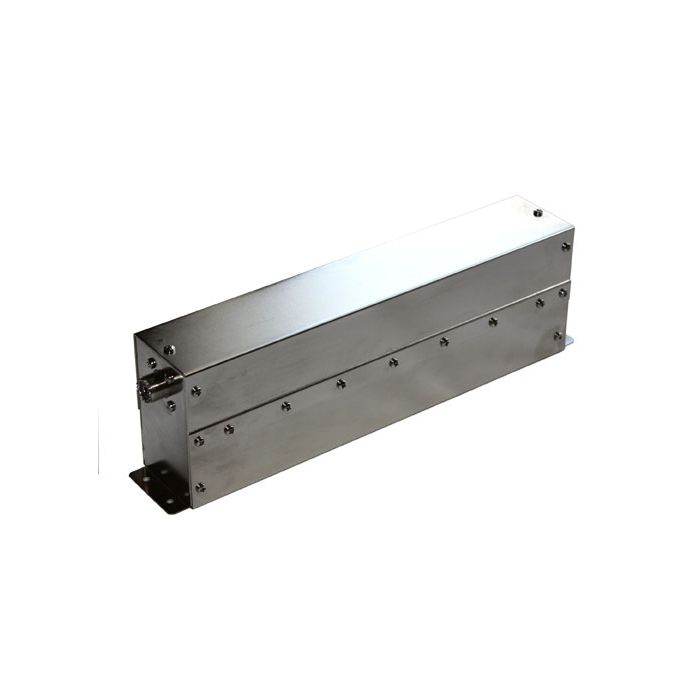

RF Limited DF3000 3KW Low Pass Filter
RF Limited DF3000 3KW Low Pass Filter
Elliptical design maximizes 2nd harmonic rejection while providing lower insertion loss>br>
Low insertion loss: < 1 dB typical
2nd harmonic rejection at 60MHz is > 50 dB typical
3,000 Watt PEP Power Handling
< -15dB (TYP < 1.4:1 VSWR) Return Loss
Dimensions: 12 x 2 x 3.5 inches
Power Handling : 3,000 Watts PEP (voice peak) :1,000 Watts RMS
Max. Attenuation : More than 60dB
Insertion Loss : Less Than 1dB Typical
Input/Output : 50 Ohm (non-polar)
Return Loss:Less Than -15dB (Typical < 1.4:1 VSWR)
